Scientific Research
Hyper E500
Broadband Excitation Illuminator for Fluorescence Microscope- Features
- KEY FEATURES BENEFITS
- ■LED Light Source- Ecofriendly design, Long Life, Instant on/off, Stable Light Output, and free from light bulb change.
- ■Broadband Spectrum- Broadband Spectrum (350nm – 700nm), sufficient to use in all research occasions related to fluorescence, such as DAPI, GFP/FITC, mCherry/Texas Red, and Cy5 excitation.
- ■Simple Operation User Interface -Easy operation and programmable.
- ■Low photo-bleaching rate- LED cold light used; increase the fluorescence cell sample survival rate.
- ■Custom Designed Thermal System for LED Light Engine- Custom designed thermal system effectively control the light engine/illuminator at the best operation temperature ensure the illuminator performs at best conditions.
Description
New generation Hyper E500. It has effectively increased theintensity of LED light source (22% ~ 143% or more)

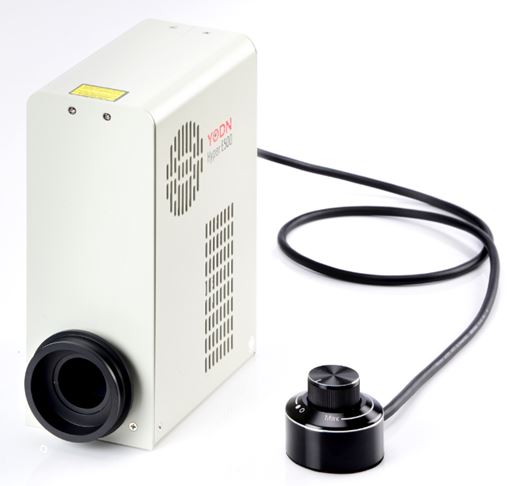

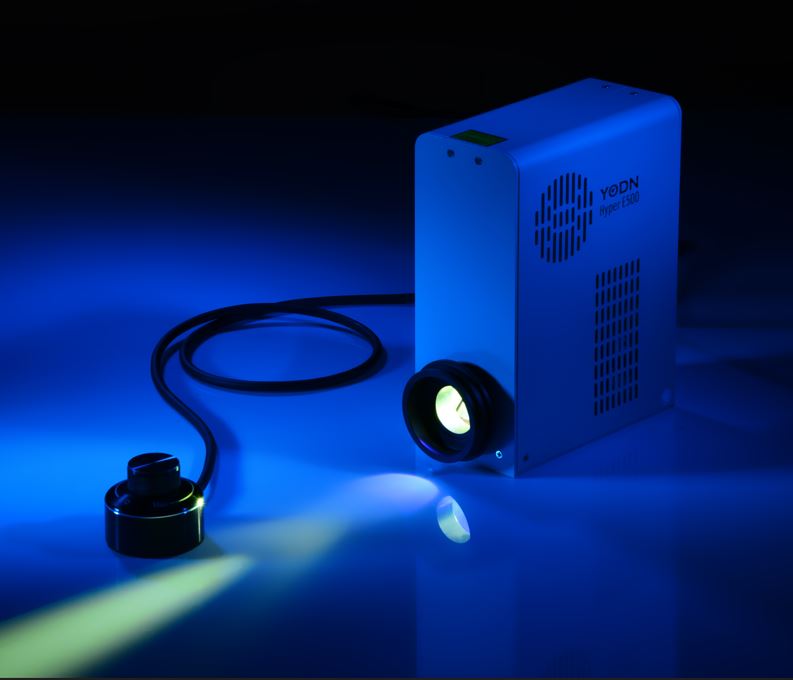

YODN Hyper E500 illuminator is a brand new light source specially made for
fluorescence microscopes. Our illuminator equips the best LED light engine,
produces spectrums that can fulfill most of the research lighting demands with
its Broadband spectrums design methodology. It helps you conduct your works
easily in an energy efficient way. It produces spectrums from 350 nm to 700 nm
by latest LED technology, a true broadband illuminator that can support
different fluorescence excitation, such as DAPI, GFP/FITC, mCherry/Texas Red,
Cy5, and more. Besides, the LED long life characteristic makes you don’t worry
about the bulb replacement.
YODN Hyper E500 is the best choice for fluorescence microscope researches.
Broadband Excitation Illuminator
產品規格
Wavelength range | 350~700nm |
LED peaks/FWHM | 365/20 nm、460/40 nm、560/80 nm |
External power supply | Universal input 100-240VAC,50/60 Hz |
Power consumption | 138W |
LED on/off response times | 1 ms |
Control Panel | On/Off、intensity increments |
Dimensions (WxDxH) mm | 80x187x206 (Excluding rubber legs, cap adaptor) |
Weight | Approx. 3 Kg(6.6 lb) |
Warranty | 2 years |
光譜圖
.png)
外觀尺寸
.png)
Specification
Wavelength range | 350~700nm |
LED peaks/FWHM | 365/20 nm、460/40 nm、560/80 nm |
External power supply | Universal input 100-240VAC,50/60 Hz |
Power consumption | 138W |
LED on/off response times | 1 ms |
Control Panel | On/Off、intensity increments |
Dimensions (WxDxH) mm | 80x187x206 (Excluding rubber legs, cap adaptor) |
Weight | Approx. 3 Kg(6.6 lb) |
Warranty | 2 years |
Spectrum
.png)
Dimensions
.png)
