Scientific Research
Hyper E600
LED Illuminator for Fluorescence Microscope- Features
- ■LED light source - Ecofriendly design, Long Life, Instant on/off, Stable Light Output.
- ■Broadband spectrum - Broadband spectrum (350nm – 700nm), sufficient to use in all research occasions related to fluorescence, such as DAPI, GFP/FITC, mCherry/Texas Red, and Cy5 excitation.
- ■Simple operation - Use smart control pad to switch your LED intensity/channel easily.
- Refelct each LED temperature and usage hours on the display.
- ■Low photo-bleaching rate - LED cold light used; increase the fluorescence cell sample survival rate.
- ■Special thermal system for
- LED light engine - Control the light engine/illuminator at the best operation temperature and performance.
- ■Support multiple digital control interface - The illuminator is designed to fit in the most research occasions, which equips with multiple digital control interfaces, such as USB and TTL. Users can easily switch between manual control or auto program operation.
- ■Support remote off-site control - The users can use the USB interface or TTL to connect the illuminator with a personal computer, and observe the research progress in a remote location.
- -TTL: ON/OFF (BNC)
- -PC control (µManager): ON/OFF, 10% intensity adjustment (USB B-type)
Description
New generation Hyper E600. It has effectively increased the
intensity of LED light source (22% ~ 143% or more)
YODN Hyper E600 illuminator is a brand new light source specially made for
fluorescence microscopes. Our illuminator equips the best LED light engine,
produces spectrums that can fulfill most of the research lighting demands with
its broadband spectrums design methodology. It helps you conduct your works
easily in an energy efficient way. It produces spectrums from 350 nm to 700 nm
by latest LED technology, a true broadband illuminator that can support
different fluorescence excitation, such as DAPI, GFP/FITC, mCherry/Texas Red,
Cy5, and more. Both manual and automatic digital programming control are
integrated in Hyper E600, offer the users easy, flexible operation options.
Besides, the LED long life characteristic makes you don’t worry about the bulb
replacement.
YODN Hyper E600 is the best choice for fluorescence microscope researches
intensity of LED light source (22% ~ 143% or more)
YODN Hyper E600 illuminator is a brand new light source specially made for
fluorescence microscopes. Our illuminator equips the best LED light engine,
produces spectrums that can fulfill most of the research lighting demands with
its broadband spectrums design methodology. It helps you conduct your works
easily in an energy efficient way. It produces spectrums from 350 nm to 700 nm
by latest LED technology, a true broadband illuminator that can support
different fluorescence excitation, such as DAPI, GFP/FITC, mCherry/Texas Red,
Cy5, and more. Both manual and automatic digital programming control are
integrated in Hyper E600, offer the users easy, flexible operation options.
Besides, the LED long life characteristic makes you don’t worry about the bulb
replacement.
YODN Hyper E600 is the best choice for fluorescence microscope researches
Specification
| Wavelength range | 350~700nm |
| LED peaks/FWHM | 365/20 nm、460/40 nm、560/80 nm |
| External power supply | Universal input 100-240VAC，50/60 Hz |
| Power consumption | 138W |
| LED on/off response times | 1 ms |
| Control options | Manual：Control Panel External control : TTL Trigger：BNC input PC control：RS232 command / USB B-type connector |
| Control Panel | On/Off、1% intensity increments |
| Dimensions (WxDxH) mm | 80x187x206 (Excluding rubber legs, cap adaptor) |
| Weight | Approx. 3 Kg（6.6 lb） |
| Warranty | 2 years |

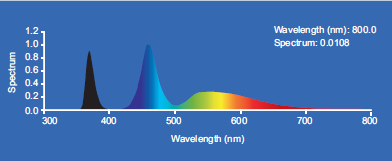

Spectrum
.png)

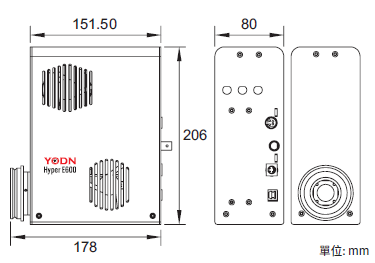

Dimensions
.png)
