Controller
Brightness Controller
YPBLN series- Features
- 1. Large screen design, parameters are clear at a glance and operation is simple
- 2. External built-in DEBUG mode and WORK mode
- 3. Built-in high-speed isolation optocoupler, through external triggering, the light source strobes and lights up. The lighting time can be set between 10-999μs.
- 4. Standard industrial serial port RS232/RS485 is optional, and all parameters can be operated remotely
- 5.DIN rail installation and bottom mounting hole installation are optional
Description
1. Application fields: It is suitable for 24V input light source control and can increase the brightness of the light source by more than 3 times.2. Product description Compared with ordinary controllers, the YPBLN controller can instantly increase the brightness of the light source
by more than 3 times and is used for standard 24V light sources . . The built-in DEBUG mode (debugging mode) can adjust the focus of the subject and the camera in the debugging mode, and the WORK mode (brightening mode) trigger can instantly increase the brightness of the light source.

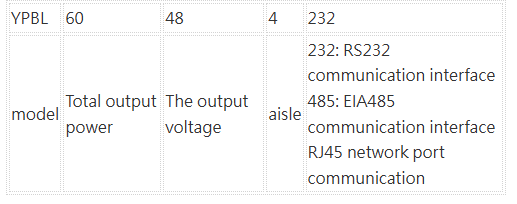

3. Model analysis
.png)
4. Product parameters
| Brightness Controller | |||
| model | YPBLN6048-4 | YPBLN-15048-4 | |
| Input voltage | AC 100-240V | ||
| The output voltage | 48V | ||
| Applicable light source | 4 channels total 60W MAX | 4 channels total 150W MAX | |
| Work (external trigger) | Luminous time | 10-990us | |
| Glow brightness settings | Set to 10-100% relative to the set pulse width ratio | ||
| Luminescence delay | 8us | ||
| trigger input voltage | DC5-24V | ||
| Debug mode (internal trigger) | Period 1.42mS and 3uS optional | ||
| Overload protection | 110% (recovered after power outage and restart) | ||
| Weight(g) | 1KG | ||
| Standard accessories | A | ||
