YPDCN series- Features
- 1. Integrate constant light, ON/OFF light and strobe light into one
- 2. Digital display, easy to confirm the setting value
- 3. External trigger high and low levels are selectable and flexible to use.
- 4. One controller can independently control four different LED light sources
- 5. Inputting an external trigger signal can control the light on and off or the strobe time of the light.
- 6. The triggering effect time is less than 50us
- 7. The external trigger input adopts high-speed optocoupler design, which is high-speed and reliable.
Description
1. Application field: suitable for 24V input light source control2. Product description: suitable for various LED light sources with constant voltage 24V input power within 48W

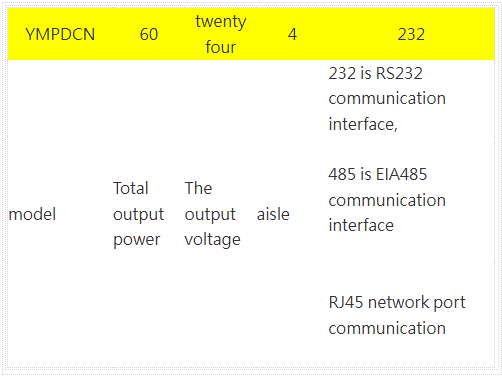

3. Model analysis
.png)
4. Product parameters
| digital controller | |||
| Model name | YPDCN6024-4 | YPDXN6024-4 | YPDCN10024-6 |
| Input voltage | AC 100-240V | 24V DC | AC 100-240V |
| The output voltage | 24V | ||
| Single channel output power | 48W | ||
| Total output power | 60W | 100W | |
| Adjustment method | PWMINYO light level 0-255 | ||
| PWM frequency | High operating frequency, low operating frequency optional | ||
| trigger output voltage | DC5-24V | ||
| Trigger delay | 8us | ||
| Overload protection | 100% (OCP is displayed at the bottom of the screen and can be restored after power outage) | ||
| Communication Interface | RS232/EIA485 optional | ||
| ID settings | TD:0-99 (During EIA485 communication, one PC can control multiple controllers, up to 99 units are supported, and different IDs need to be set separately. |
||
| NO/OFF glow | Set according to trigger signal time or RS232, EIA485 | ||
| Number of output channels | 4 channels | ||
| Usage environment | Temperature 0-40°, humidity 20-85% | ||
