High power constant current controller

YPCC series

Features: 1. Large screen design, parameters are clear at a glance and operation is simple; 2. Equipped with Auto ID technology to intelligently identify light source parameters; 3.256-level channel brightness adjustment, high-precision constant current output; 4. Built-in soft trigger, the channel can be turned on and off through external communication; 5. Built-in high-speed isolation optocoupler, through external triggering, the light source strobes, thus effectively extending the service life of the light source.; 6. Delay setting, the lighting time can be set between 1-999ms delay on/off; 7. Standard industrial serial port RS232/RS485/RJ45 is optional, and all parameters can be operated remotely; 8.DIN rail installation and bottom mounting hole installation are optional

Description

1. Application field: suitable for 48V input light source control

2. Product description: High-power PCC digital constant current controller, used for large line light sources and backlight sources, with 256 levels of constant current output adjustment, equipped with automatic light source identification technology, no fear Long and short line light sources can automatically identify the current size, external high-speed triggering, can save energy and extend the service life of the light source, and have built-in standard industrial-grade serial ports and other functions.

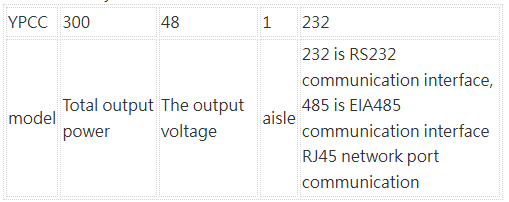

3. Model analysis
