Hyper E640 Max

Broadband Excitation Illuminator for Fluorescence Microscope

Description



Effective wavelength range: 350~650nm

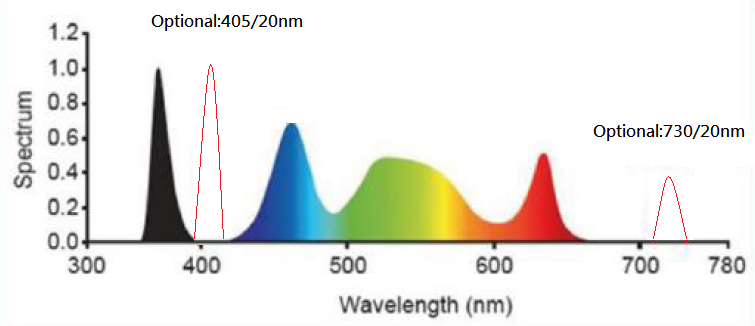

LED peak wavelength/intensity: 365/20nm.460/40nm.560/80nm.630/20nm (Optional: 405/20nm.730/20nm)*
External power specifications: Global voltage 100-240VAC, 50/60Hz
Power consumption: 120W
LED response time: 20ms
Manual control box functions: 1. ON/OFF 2. Digital light intensity control 10~100% (adjustable across all wavelengths)
Color output: N/A; ALL (White)

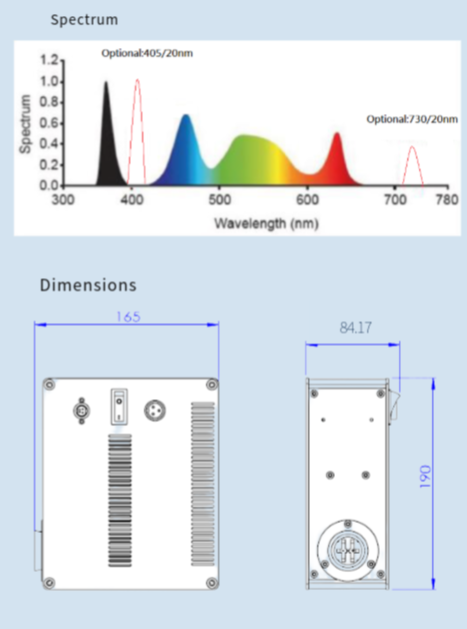

Dimensions: Light source box 84.17*165*190 mm / Transformer 72*175*35mm
Weight: 1.9kg (excluding power supply 1.2kg and control box 0.3kg)
Product warranty: Light source box 24 months
Certification: CE (TBA)
*365nm can be swapped for 405nm; 630nm can be swapped for 730nm, customization required before ordering
