Scientific Research

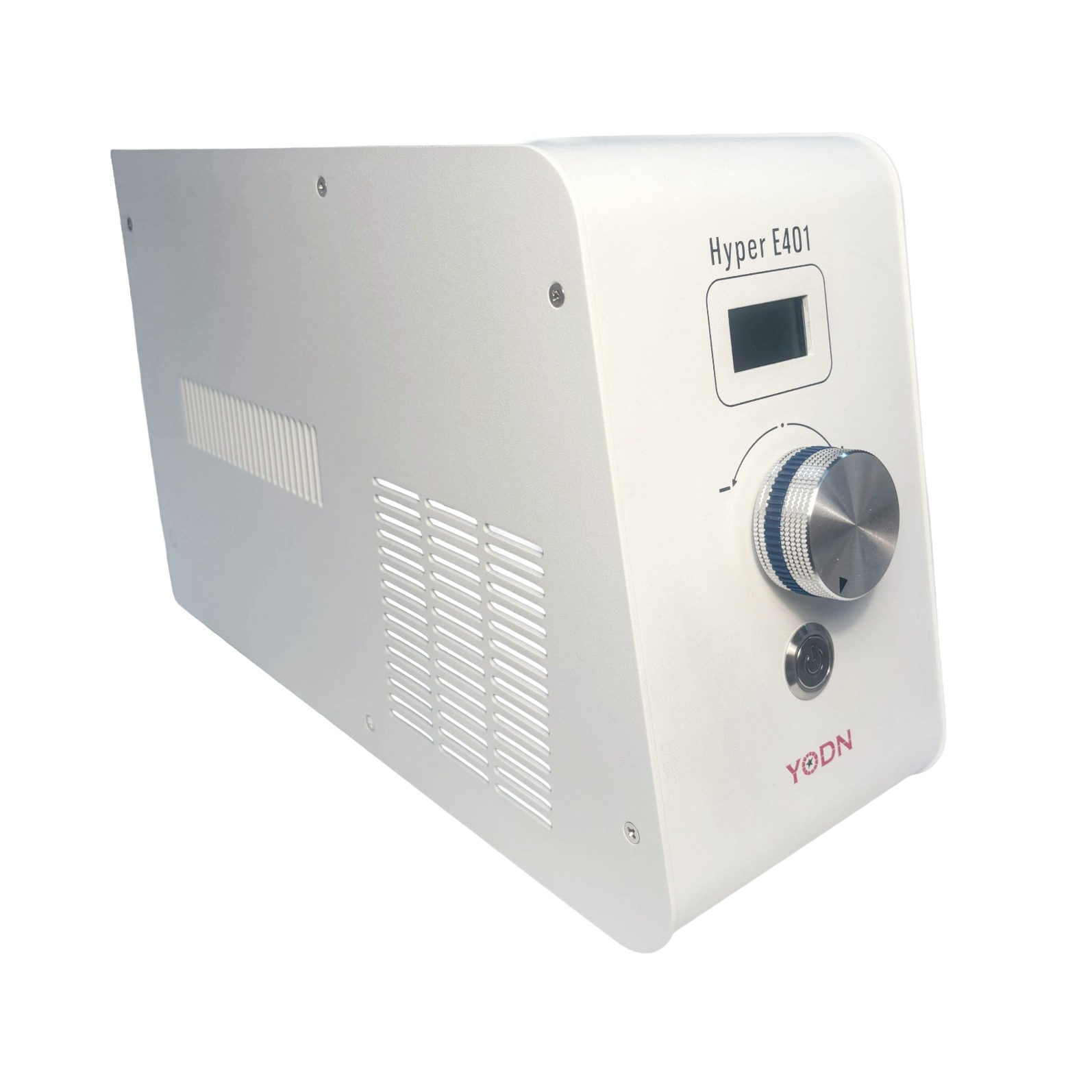

Hyper E401
Broadband Excitation Illuminator for Fluorescence Microscope- Features
- 1. LED Light Source Design - Energy-saving, long-lasting, microsecond on/off, stable light output, no bulb replacement required
- 2. Wide-range Spectrum - Suitable for all fluorescent excitation research experiments
- 3. Low Photobleaching Rate - LED cold light source effectively increases the survival rate of fluorescent cell samples
- 4. Post-Emitting Liquid Light Guide - Compact and flexible light guide design
- Enhancing the flexibility of laboratory setup
- 5. Customized Cooling System Design - Effectively extends product lifespan and performance
- 6. Supports Digital Electronic Control - Quickly switches between manual and automatic digital electronic control programs
- 7. Supports Remote Control - Light source can be remotely controlled via computer USB
Description
The Hyper E401 utilizes wide-area light source technology with its proprietary LED light source engine, providing a variety of spectra to excite various major microscopic fluorescence applications. Whether the user is a cell biologist, bioengineer, academic researcher, or microscope operator, the Hyper E401 allows users to complete their work simply and efficiently, achieving their goals with low power consumption. The Hyper E401 successfully integrates and commercializes LED technology, with its wide-area light source technology producing an effective spectrum from 350 nm to 650 nm, supporting common fluorescence excitation bands such as DAPI, GFP/FITC, mCherry/Tex-as Red, Cy5, and others. A rich array of electronic control modes, including both manual and digital electronic programmable control, are integrated into the newly released Hyper E401; this allows for easy operation and provides different operating options depending on the specific usage scenario. Even more valuable is the fact that the Hyper E401 light box utilizes the long-life characteristics of LED light sources, eliminating the time and effort required for bulb replacements.Product Specifications:
1. Wavelength range: 350~650 nm
2. LED peak/half-width (nm): 365/20, 460/40, 560/80, 620/20nm
3. External power supply: Universal input 100-240VAC, 50/60 Hz
4. Power consumption: 93W
LED on/off response time: 20 ms
5. Expected LED lifespan: >=25000 hours
6. Panel manual control functions: 1. ON/OFF 2. Intensity adjustment (full channel)
7. Dimensions (L, W, H) mm: 128, 368, 216
8. Weight: Approx. 4Kg (including power supply)
9. Warranty: 24 months for illuminator (excluding accessories)
10. Main usage mode: When used with a 1.5M liquid light guide tube and collimator on a microscope.

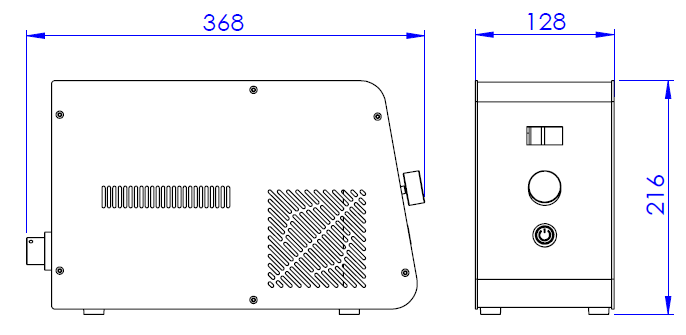

External dimensions
.png)

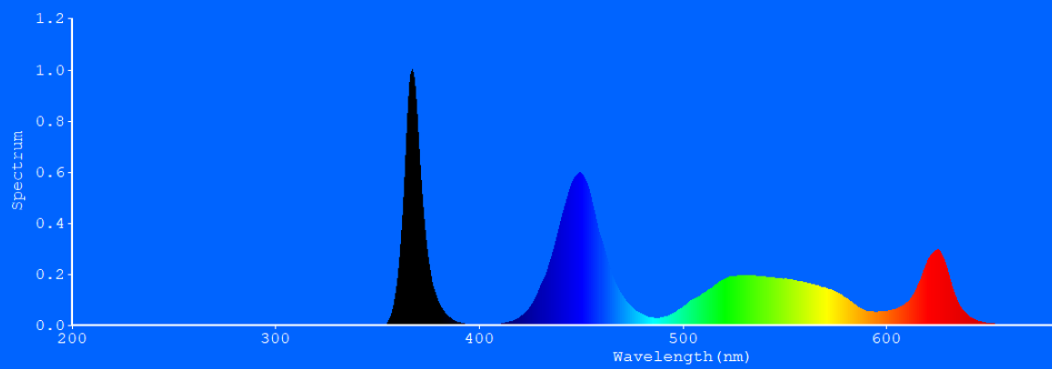

Spectrum:
.png)
