Scientific Research
Hyper EN120
Broadband Excitation Illuminator for Fluorescence Microscope- Features
- 1. LED Light Source Design - Energy-saving, long-lasting, microsecond on/off, stable light output, no need to replace bulbs.
- 2. Wide-Range Spectrum - Broadband spectrum (365~630nm), suitable for all fluorescent excitation research experiments.
- 3. Easy Operation - Simple operation, clear status information.
- 4. Low Photobleaching Rate - LED cold light source effectively increases the survival rate of fluorescent cell samples.
- 5. Compact Design - Small light engine, ideal for research laboratories with limited space.
- 6. Customized Cooling System for LED Light Engine - Keeps the light engine/illuminator at optimal operating temperature and performance.
Description

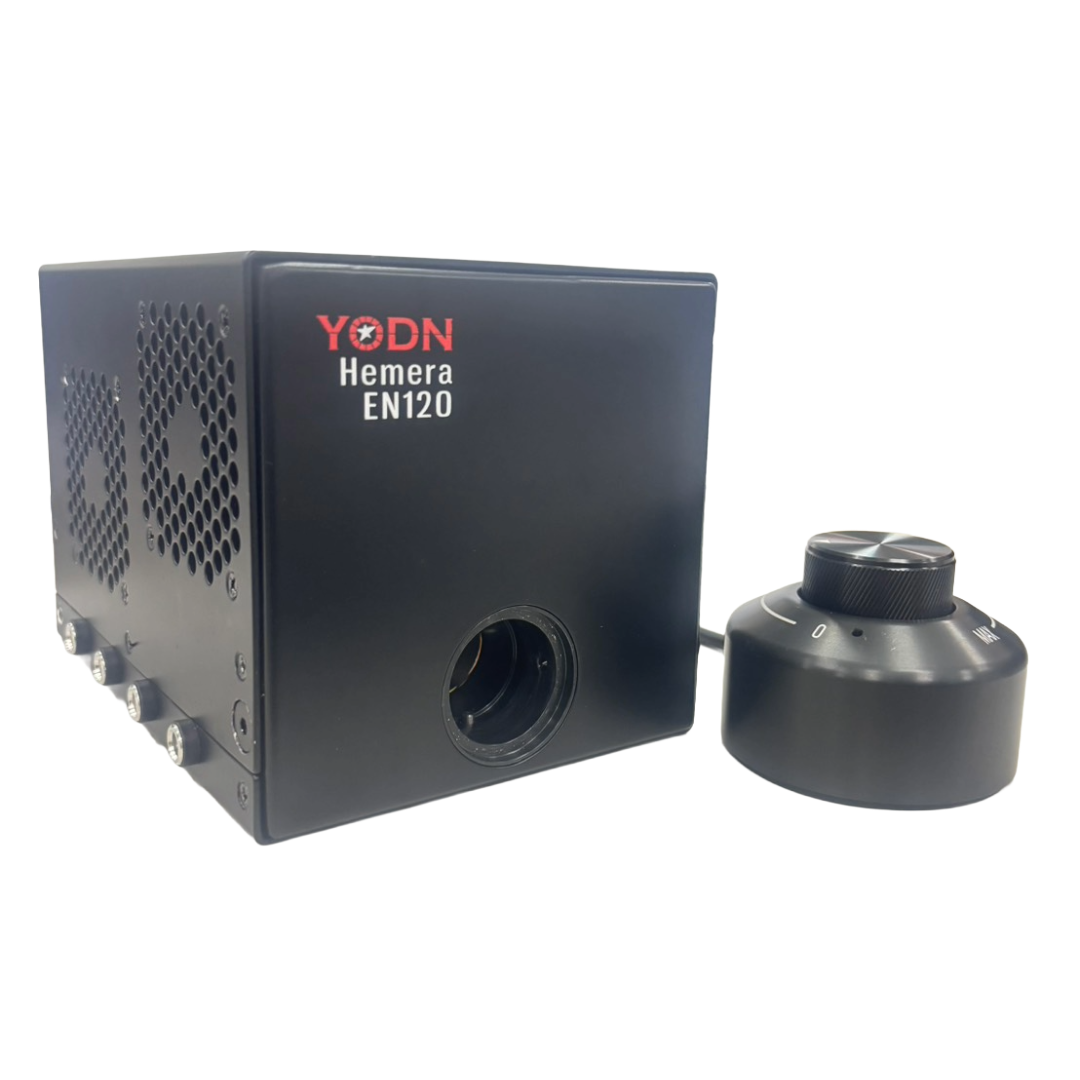

The Hyper EN120 is the latest illuminator, employing cutting-edge LED technology. It produces a broad spectrum from 365 to 630 nm and supports various fluorescence excitations, such as DAPI, GFP/FITC, and mCherry/Texas. Designed specifically for fluorescence microscopy, the Hyper EN120 features an advanced LED illumination engine to meet the lighting needs of research. Utilizing the latest LED technology, it provides a wide spectral range suitable for various fluorescence excitation applications. Furthermore, the long lifespan of the LEDs means you never have to worry about bulb replacements, making it the most cost-effective choice for fluorescence microscopy research.Specification：
- Wavelength range: 365~630 nm
- LED peak/half-width (nm): 385/20, 475/40, 560/80, 620/20nm
- External power supply: Universal input 100-240VAC, 50/60 Hz
- Power consumption: 85W
- LED on/off response time: 1 ms
- LED expected lifespan: >=25000 hours
- Controller: LED intensity adjustment (full channel)
- Dimensions (mm): a. Illuminator: 115*112.8*165 b. Power supply: 67*167*35 c. Controller: φ69*48.5
- Weight approx.: 2.0Kg (including power supply)
- Warranty: 24 months for illuminator (excluding accessories)
*385nm can be changed to 365nm or 405nm upon order request.

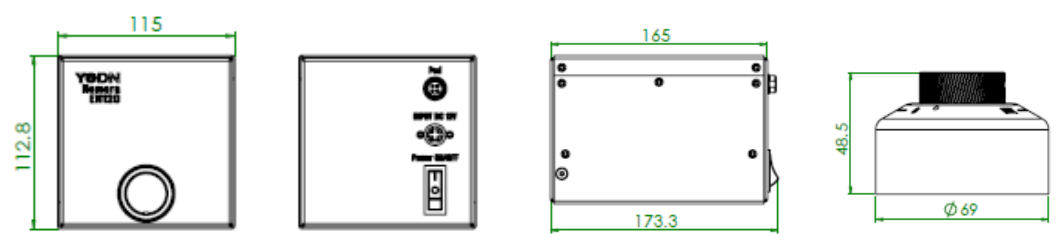

Dimensions (mm):
.png)

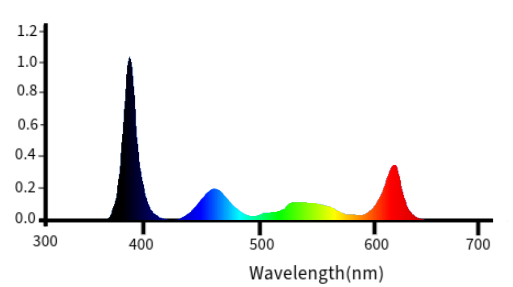

Spectrum：
.png)
- Wavelength range: 365~630 nm
- LED peak/half-width (nm): 385/20, 475/40, 560/80, 620/20nm
- External power supply: Universal input 100-240VAC, 50/60 Hz
- Power consumption: 85W
- LED on/off response time: 1 ms
- LED expected lifespan: >=25000 hours
- Controller: LED intensity adjustment (full channel)
- Dimensions (mm): a. Illuminator: 115*112.8*165 b. Power supply: 67*167*35 c. Controller: φ69*48.5
- Weight approx.: 2.0Kg (including power supply)
- Warranty: 24 months for illuminator (excluding accessories)
*385nm can be changed to 365nm or 405nm upon order request.
Dimensions (mm):
Spectrum：
