Hyper iE340

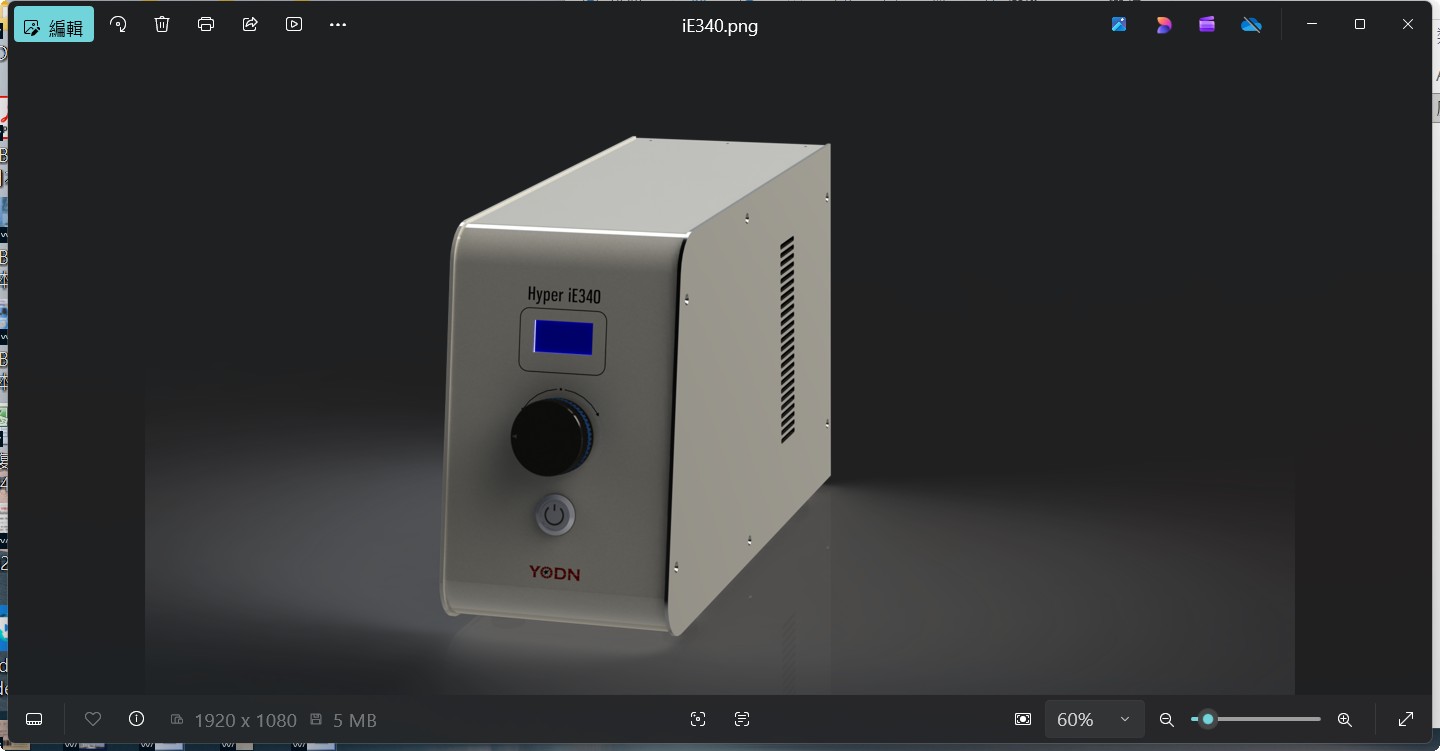

Hyper iE340 Broadband Excitation Illuminator for Fluorescence Microscope■ Product Introduction
ou refine your research to perfection; we contribute top-tier light sources to realize your dreams! Taiwan's U-Light, a specialized light source manufacturer, proudly presents the Hyper iE340 LED light source box specifically designed for fluorescence microscopes. Utilizing wide-area light source technology and our proprietary LED light source engine, it provides a wide range of spectra for exciting various major microscope fluorescence applications. Whether you are a cell biologist, bioengineer, academic researcher, or microscope operator, the Hyper iE340's user interface is intuitive and easy to understand, enabling efficient work and low power consumption. The wide-area light source technology generates an effective spectrum from 350 nm to 700 nm, supporting common fluorescence excitation bands such as DAPI, GFP/FITC, mCherry/Texas Red, Cy5, and others. The newly launched Hyper iE340 integrates a variety of electronic control modes, including both stand-alone manual and digital electronic program control; this not only makes it easy for operators to get started, but also provides different operating options according to the usage scenario; moreover, the Hyper iE340 light box utilizes the long-life characteristics of LED light sources, so users no longer need to spend time and effort changing bulbs.
■Specifications：
Light Source: LED Wavelength
Range: 350~650nm
LED Peak Wavelength/Intensity: 365/20nm, 460/40nm, 560/80nm, 630/20nm (Optional: 405/20nm, 730/20nm); Optional liquid light guide tube (1.5m/φ3mm) and collimating lens
External Power Supply: Universal voltage 100-240VAC, 50/60 Hz P
ower Consumption: 135W
LED Lifespan: Average 25,000 hours
Weight: 4 kg (including transformer)
LED Response Time: 20ms
Panel Control Functions: 1. ON/OFF 2. Digital Light Intensity: 0~100% 3. Color Separation Output - External Control: TTL Trigger & PC control
(RS232 command/USB B-type connector)
Dimensions (mm): Light Source Box 28*217*364
Transformer 67*167*35
Panel display information: Accumulated LED usage hours and status indicator lights Light source box dimensions: W128*H218*D364 mm
Warranty: 2-year warranty for the light source box (excluding accessories)
■ Advantages
LED light source design
Wide-range spectrum
Easy-to-use interface
Low photobleaching rate
Rear-emitting liquid light guide light output design
Customized heat dissipation system design
Supports multiple digital electronic controls
Supports remote control
