Hyper E740

Broadband Excitation Illuminator for Fluorescence Microscope
Features
YODN Hyper E740 produces spectrums from 350nm to 650 nm by our latest LED technology, a true broadband illuminator that can support diferent fuorescence excitation, such as DAPI, GFP/FITC, mCherry/Texas Red, Cy5 (or Cy7), and more. Both manual and automatic digital programming control are integrated in Hyper E740, ofer the users easy, fexible operation options. Best of all, the LED long life characteristic frees the users from bulb replacement and maintenance.

Description

Introducing the new generation of lighting box , Hyper E740. It increases the intensity of LED light source (22% ~ 143% or more) from our pervious model.

YODN Hyper E740 illuminator is a brand new light source specially made for fluorescence microscopes. Our illuminator equips the latest LED light engine, produces spectrums that can fulfll most of the research lighting demands with its broadband spectrums design
methodology. It helps you conduct your works easily in an energy efcient way. It produces spectrums from 350nm to 650 nm by our latest LED technology, a true broadband illuminator that can support diferent fuorescence excitation, such as DAPI, GFP/FITC, mCherry/Texas Red, Cy5 (or Cy7), and more. Both manual and automatic digital programming control are integrated in Hyper E740, ofer the users easy, fexible operation options. Best of all, the LED long life characteristic frees the users from bulb replacement and maintenance.

YODN Hyper E740 is the best choice forfuorescence microscope researches.


Specifications
■Effective wavelength: 350~650nm

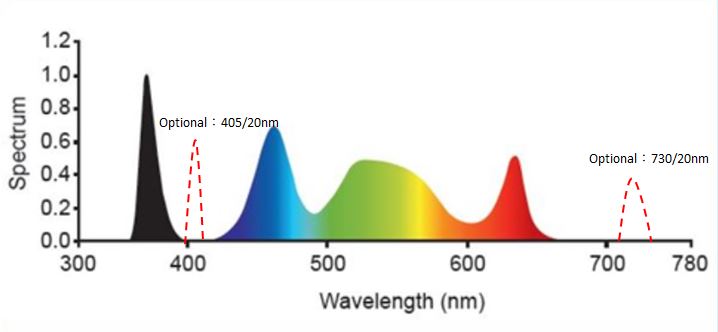

■LED peak wavelength/intensity: 365/20 nm, 460/40 nm, 560/80 nm, 630 nm/Optional:405/20nm、730/20nm
■External power supply specifications: Global voltage 100-240VAC, 50/60 Hz
■Power consumption: 80W
■LED response time: 20ms
■Control box manual control function: 1. ON/OFF 2. Digital light intensity control 10% - 100% (full band or single band adjustment) 3. Remote control (TTL) or local control
■Color separation output: UV, Green, Blue, Red, All (White)
■External control interface: TTL Trigger & PC control (RS232 command / USB B-type connector)
■External link control: TTL: ON / OFF (BNC) PC control (µManager): ON/OFF, 10% light intensity adjustment (USB B-type)
■Product warranty: 24 months for light source box
■Main usage mode: Paired with 1.5M liquid light guide and collimating lens to connect to the microscope

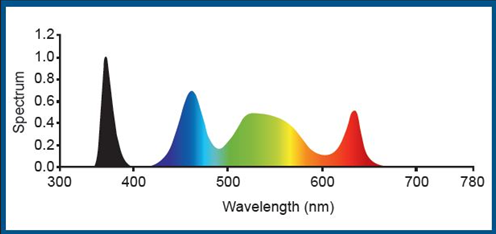

Spectrum





 Dimensions
