Hyper E640

Broadband Excitation Illum inator for Fluorescence Microscope
■LED Light source- Eco-friendly design, long file, instant on/off, stable light output.
■Broadband spectrum- Broadband spectrum (350nm~650nm), sufficient to use in all research occasions related to
fluorescence, such as DAPI, GFP/FITC, Mcherry/Texas Red, and Cy5 excitation(Optional Cy7)
■Simple operation- Use smart control pod or remote control (TTL) to switch your LED intensity/channel easily.
■Low photo-beaching rate- LED cold light used;increase the fluorescence cell sample survival rate.
■Custom thermal system for LED light engine- Control the light engine/illuminator at the best operation temperature and performance.
■Support multiple digital control-Easy switch between manual control or auto program operation(USB/TTL)
■Support remote off-site control-Use the USB interface or TTL to connect the illuminator with a personal computer, and
observe the research progress in a remote location.
■TTL: on / off (BNC)
PC control (μManager): on/off, 1% intensity adjustment (USB B-type)


New generation Hyper E640. It has effectively increased the intensity of LED
light source.
YODN Hyper E640 illuminator is a brand new light source specially mad for
fluorescence microscopes. Our illuminator equips the best LED light engine,
produces spectrums that can fulfill most research lighting demands with its
broadband spectrums design methodology. It helps you conduct your works
easily in an energy efficient way. It produces spectrums from 350nm to 650nm
by latest LED technology, a true broadband illuminator than can support
different fluorescence excitation, such as DAPI,GFP/FITC, mCherry/Texas Red,
Cy5 (Optional Cy7). Both manual and automatic digital programming control
are integrated in Hyper E640, offer the users easy, flexible operation options.
Besides, the LED long life characteristic makes you don’t worry about the
bulb replacement.
YODN Hyper E640 is the best choice for fluorescence microscope researches
■Wavelength- range: 350~650nm

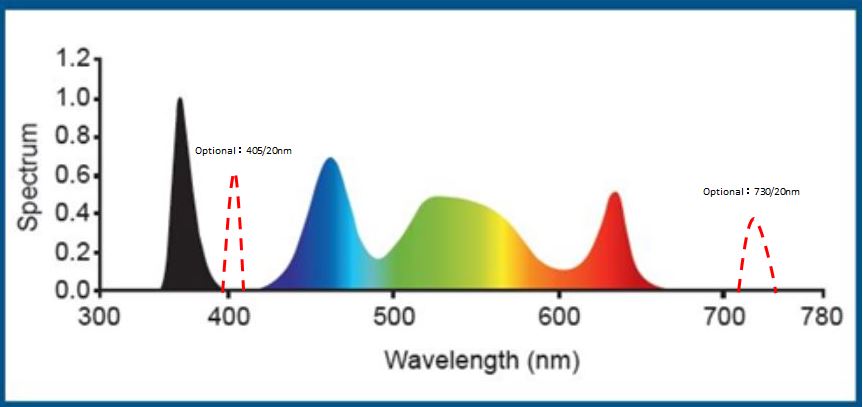

■LED peaks/FWHM: 365/20 nm, 460/40 nm, 560/80 nm, 630/20 nm
(Optional: 405/20 nm, 730/20 nm)*
■External pow er suppl-y Universal input 100-240VAC, 50/60 Hz
■Power consumption: 75 W
■LED on/o  res ponse times: 20 ms
■Control pad: ON/OFF;LED intensity control 10% - 100%
■Weight: Approx. 2.7Kg (including power supply, control pad)
■Warranty: Illuminator 24 Months
■Standard configuration illuminator, control pad, adaptor(choose one),
integrated power supply.
■Optional 1.5m long, Φ3mm liquid light guide/stand, collimators.
■Cert ifications: CE (TBA)
■Dimensions (mm): Illuminator 165.2*190*84.17;Control pad:113*80.5*43;Power adapter:72*175*35
*365nm can be changed to 405nm;630 can be changed to 730nm;made by order.
